Description
continuous geared hinge HAGER - 780-053HDHAGER 780 053HD Heavy Duty Half Surface Continuous Geared Hinge HAGER hinges are designed to meet a number of applications. Frequency of use (low, medium or high) and door frame types combined with end use, environmental considerations and building code compliance determine the appropriate hinge application. ANSI BHMA A156. 26 C Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA

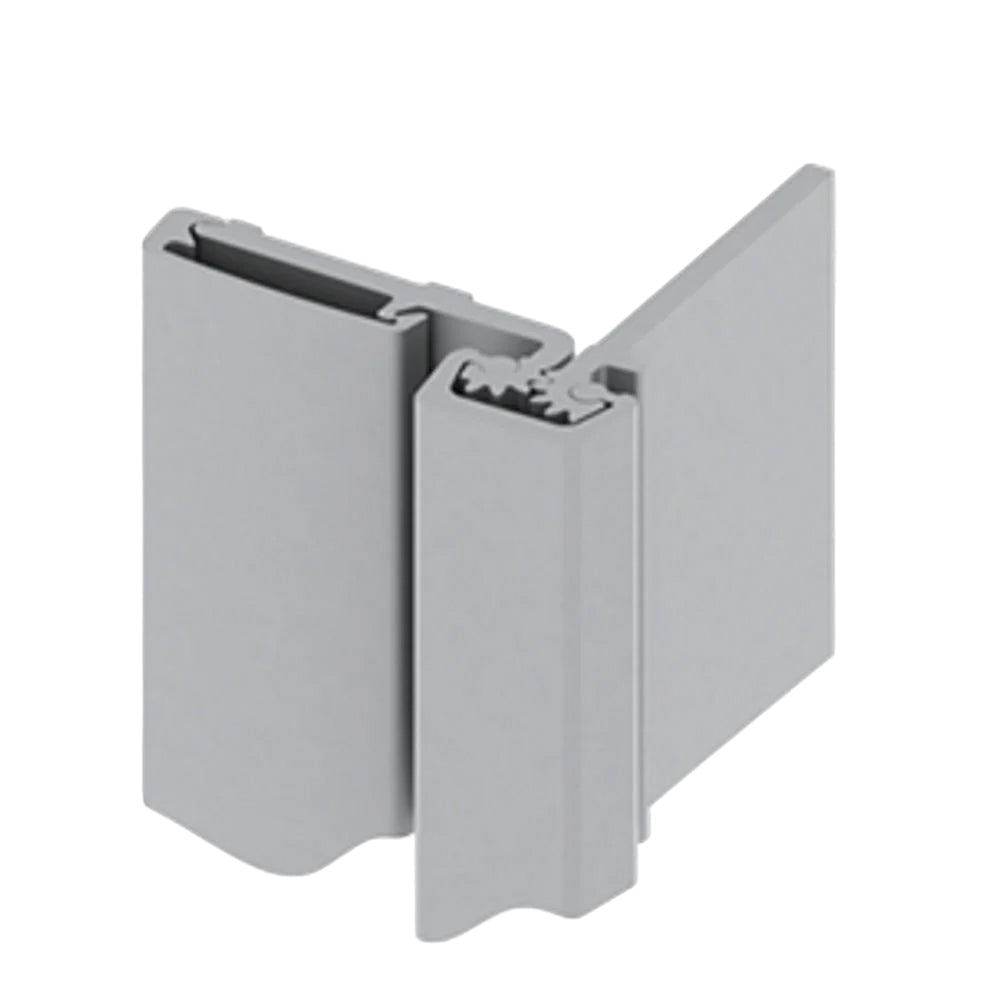

HAGER - 780-053HD - Heavy Duty Half Surface Continuous Geared Hinge
HAGER hinges are designed to meet a number of applications. Frequency of use (low, medium or high) and door/frame types combined with end use, environmental considerations and building code compliance determine the appropriate hinge application.
- ANSI/BHMA A156.26 C
- Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards.
- Warranty: Lifetime warranty statements, associated exceptions and limitations are available online at www.HAGERco.com. HAGER warrants US10B finish only over brass or bronze base material. If steel base material is necessary, HAGER recommends US10A lacquer finish.
Product Specifications:
Applications:
- Frame leaf alignment rib for proper hinge location
- Security molding
- 1/8" (3 mm) inset
Clearance:
- 5/32" (4 mm) minimum recommended hinge side.
- Plus standard lockside clearance.
Fasteners:
- Standard: 1/4-20 x 1-1/4" Sexbolt (fastener + Post).
- Standard: Dril-Kwik® – #12-24 X 11/16" Flat Head Screws.
- Additional Options Available upon request.
Features:
- Standard duty for medium frequency doors. Heavy duty for high frequency doors or heavy, medium frequency doors
- Frequency doors
- Frame leaf alignment rib for proper hinge location
- Security molding
- 1/8" (3 mm) inset
Finishes:
- DKB - Satin Aluminum Clear Anodized (628)
- DBA - Dark Bronze Anodized Aluminum (313)
- BLK - Black Etch Anodize
Fire Rating: Up to 3-hour metal and 90 minute wood composite (with studs)
Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel
Length: 79", 83", 85", 95", 119"
Material: Aluminum 6063-T6
Door Reinforcement: None required
Notes:
EPD: Roton Continuous Hinges Environmental Product Declaration
Download:
